The LadyBird is an AOI inspection terminal for through hole hand insertion or automated insertion components. The LadyBird AOI System is for validation of correct parts placement, orientation, polarity and excessive inclination of hand insertion components. The Ladybird AOI system will provide component inspection with complete fault coverage for hand assembly pre-solder and post processes along with automated insertion. There is an optional software upgrade for solder side inspection capability available.
Please click here to goto the official LadybirdAOI.com website
Find the CAD import details needed for programming the Ladybird
Click here to get to videos of the Ladybird in action!!!!
Email Tech Support
The LadyBird is an AOI inspection terminal for through hole hand insertion or automated insertion components. The LadyBird AOI System is for validation of correct parts placement, orientation, polarity and excessive inclination of hand insertion components. The Ladybird AOI system will provide component inspection with complete fault coverage for hand assembly pre-solder processes along with automated insertion. There is an optional software upgrade for solder side inspection capability available.
- The Ladybird does not use image comparison
- Adopting the proprietary FuzzicalZ Engine to make inspections by judgements of color signatures
- Fast inspection speed - typically less than 10 seconds per board
- Image capture is taken in one snap - not by a moving camera
- Large depth of field at 80mm
- Programming and debug is done offline
- All inspected images can be stored
- Statistical data used for process improvement
Typical Inspections
- Polarity
- Missing
- Lifted
- Excessive inclination
- Screw presence
- Wrong color
- LED color
- FOD
- Final Inspection of Box Build
- Solder Side Inspection option
- Conformal coating
FINAL ASSEMBLY BUILD AOI

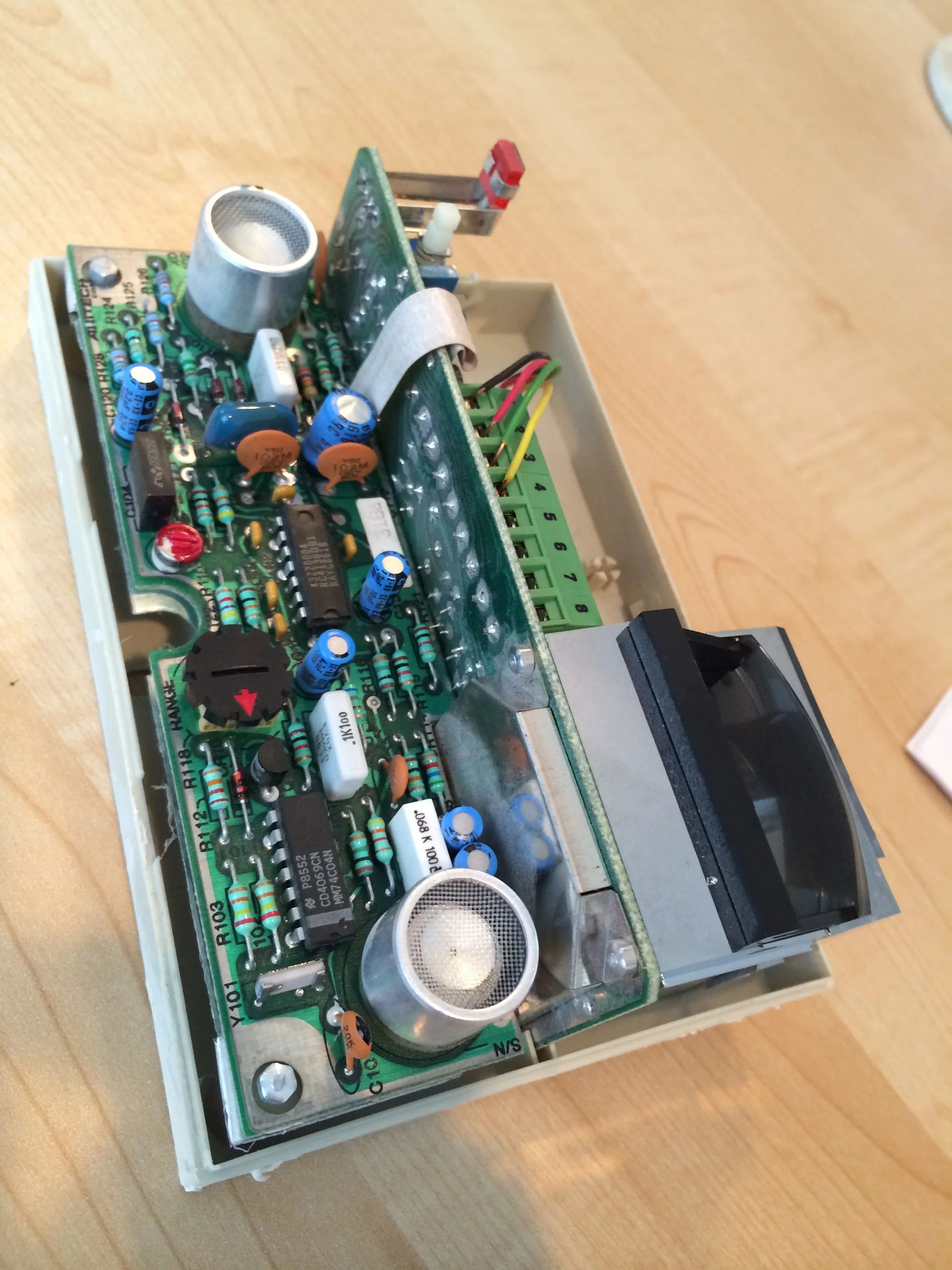

Here is an application for a final assembly box build. The inspection needs to confirm the position of the dial, the switch and the proper installation of the wires to the terminal blocks. Please see some application pictures below and the video of the passing and failing inspections.
